Wood Log Splitter/dia.1200mm used Vertical Band Saw Machine with sports car /wood cutting vertical band saw

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : MJ3212-Z5000,MJ3212-Z3000,MJ3210-Z5000,MJ3310-Z3000

MOQ : 1 SET

Price : US $6,000 - 50,000 / Set

Packaging Details : container loading

Delivery Time : within 15 days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 1500sets/year

Name : Woodworking Saw Machines Wood Cutting Vertical Band Saw Machine With Carriage

Type : Band Saw

Max. sawing log diameter : 1500mm

Max. sawing log length : 6meters or as customer needs

Usage : log slicing to planks or timbers

Voltage : 380v,50HZ,3PH or as requested

Main motor power : 30kw, 37kw, 45kw, etc

Saw wheel diameter : 1250mm

Bandsaw blade size : 9200 x 150 x 1.25mm

Carriage walking : Inverter

Operation : PLC touching screen auto setworks

After-sale service provided : Engineers available to service machine overseas

Warranty : 1 YEAR

Contact Now

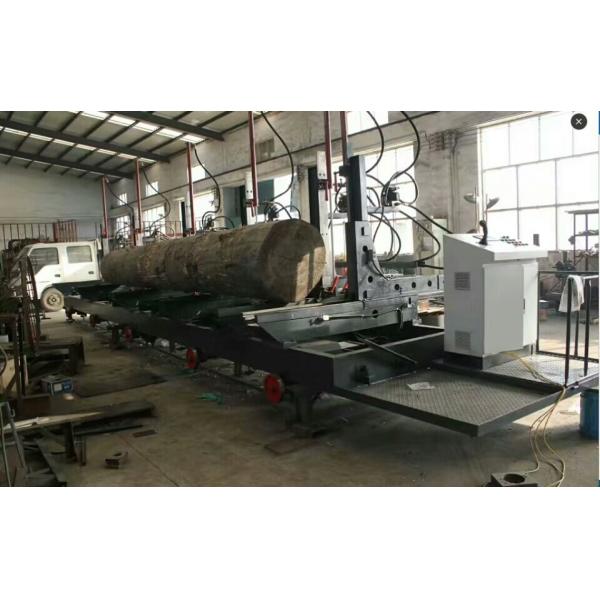

CNC Vertical Band Sawmill with auto Log Carriage

Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

1.MJ3212 CNC vertical band sawmill with automatic log carriage

Technical data	MJ3212-ZD3000	MJ3212-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1200mm	1200mm
Maximum sawing log length	4meters	6meters
Main motor	37KW	37KW
Saw blade LWT	8600x150x1.25mm	8600x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	7500kgs	8000kgs

2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage

Technical data	MJ3212B-ZD3000	MJ3212B-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1500mm	1500mm
Maximum sawing log length	4meters	6meters
Main motor	45KW	45KW
Saw blade LWT	9200x150x1.25mm	9200x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	11000kgs	12000kgs


Wood Log Splitter/dia.1200mm used Vertical Band Saw Machine with sports car /wood cutting vertical band saw

Feedback from Users

Wood Log Splitter/dia.1200mm used Vertical Band Saw Machine with sports car /wood cutting vertical band saw

Related Saw Machine

Heavy Duty Large Size Horizontal Band Sawmill

The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .

Technical specifications:

Model	MJ1200	MJ1500	MJ2000	MJ2500
Max. sawing width	1200mm	1500mm	2000mm	2500mm
Height from blade to track	1100mm	1200mm	1700mm	2200mm
Saw wheel diameter	1070mm	1070mm	1070mm	1070mm
Max.sawn thickness	350mm	350mm	400mm	400mm
Sawing wood length max.	6meters	6meters	6meters	6meters
Saw blade length & width	7900 &125mm	8600&125mm	9700&125mm	10500&125,150mm
Main motor power	30kw	37kw	45kw	55kw
Weight	3800kgs	4500kg	5000kg	5500kg

Wood Log Splitter/dia.1200mm used Vertical Band Saw Machine with sports car /wood cutting vertical band saw

Platform Vertical Band Sawmill

Used for wood logs or lumber cutting

Technical Specifications	MJ328	MJ329	MJ3210	MJ3310	MJ3212
Saw wheel diameter (mm)	800	900	1000	1070	1250
Saw wheel width (mm)	110	120	120	120	140
Saw wheel speed (rpm)	750	750	750	750	750
Saw wheel, saw clip movement	manual	manual	Automatic	Automatic	Automatic
Saw blade length	5700	6400	6800	7400	8600
Max. cutting wood diameter (mm)	650	750	900	1000	1200
Main motor power (kw)	11	15	22	30	37
Weight (kg)	1000	1300	1600	1600	3200
Remarks	1.with iron made safe protective casing; 2. manual lubrication
