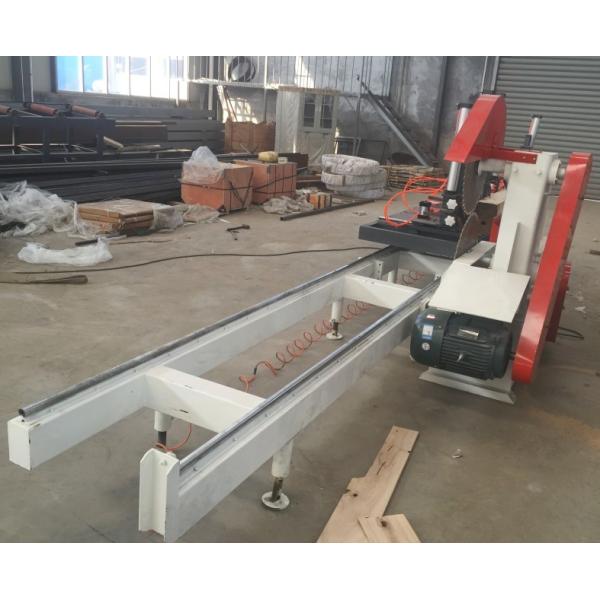

500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : CT1500, CT2000,CT3000, etc

MOQ : 1 SET wood slidint table saw

Price : US $2,500 - 9,800 / Set

Packaging Details : iron made frame pallet

Delivery Time : within 15 days

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000sets/year

Name : Twin blades circular sawmill machine

Cutting log dia. : no more than 480mm or 19''

Max. Cutting log length : 1.5meters, 2meters, 3meters

Carriage walking forward/back : Frequency auto walking

Main electric motor : 7.5kw x 2sets

Walking motor : 1.5kw

Voltage : 380v/3phase or as customer needs

Circular blade diameter : 500mm

Warranty : 12 months

After-sales service : video technical support, spare parts

Contact Now

Automatic Circular sawmill sawing machine with log carriage for wood hard logs cutting

Twin Blades Circular Sawmill with Log Carriage

The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
The circular saw blade can avoid band saw blade bending,or dig hole on wood.
The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
The production capacity is more than 4 timers than band sawmill.
The specification is adjustable,Convenient to move the running rule,accuracy.
The track use linear guideway,accuracy,no error,wear resistent.
The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.

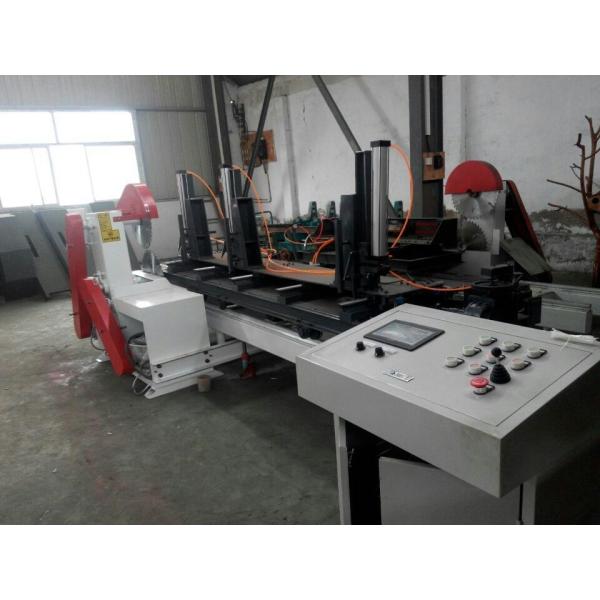

Computer Type

Model	CT1500	CT2000	CT3000
Max Sawing Wood Diameter	400mm	400mm	400mm
Max Sawing Wood Length	1500mm	2000mm	3000mm
Saw Blade Diameter	500mm	500mm	500mm
Motor Power	7.5KW*2	7.5KW*2	7.5KW*2
Rail Length	3500mm	5000mm	6500mm
Wood Fasten Model	Pneumatic up/down	Pneumatic up/down	Pneumatic up/down
Carriage Rail Model	Linear Axis	Linear Axis	Linear Axis
Feeding mode	Electric frequency variable speed adjustable
Operation	PLC touching screen automatic operation

Optional part:
1.Maximum sawing log diameter is upto 48cm .
2.When cutting very hardwood we can increase motor power as customer needs .
500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting

Wood Sliding Table Sawmill (Manual type )

Model	TT1500	TT2500	TT3000
Max Sawing Wood Diameter	400mm	400mm	400mm
Max Sawing Wood Length	1500mm	2500mm	3000mm
Saw Blade Diameter	500mm	500mm	500mm
Motor Power	7.5KW*2	7.5KW*2	7.5KW*2
Rail Length	3000mm	5000mm	5800mm
Wood Fasten Model	Pneumatic	Pneumatic	Pneumatic
Carriage Rail Model	Linear Axis	Linear Axis	Linear Axis

500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting

Optional -Diesel engine type

Optional -log loading deck and roller conveyor

Related Saw Machine

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate.
Finished with Carbide band saw blade for hard wood cutting .
The sawing kerf is small, reduce the waste to high output.
The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .

Specifications:
Model	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawn Thickness	2-250MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length MM	1300-4500	1300-4500	1300-4500	1300-4500
Main Motor Power	15KW	18.5KW	22KW	30KW
Lifting Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	1100	1100	1300	1500

Detailed Images of stanard model:
